RS-449 Straight-thru Cable [DB37M/DB37F]

RS-449 Straight-thru Cable [DB37M/DB37F] Description

This RS-449 cable has a fully loaded DB37 male connector at one end and a fully loaded DB37 female connector at the other end. This cable has the proper pairing, shielding, and grounding necessary to meet EIA-449 standards. Most applications require a PVC jacket. A plenum rated jacket may be required in some cases to meet local fire codes.

This cable makes use of RS-422 differential signaling per the industry standard for RS-449 over DB37. We also provide a fully-loaded DB-37 Straight-thru Cable that includes pins 1 through 37 and does not use RS-449 pairing.

Stonewall's RS-449 Straight-thru Cable [DB37M/DB37F] is available with the following options:

Jacket Type

Standard PVC
Plenum

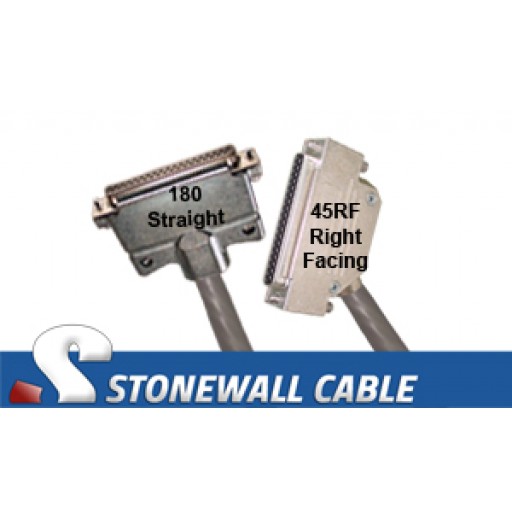

Connector 1 Exit Angle

180
45LF
45RF
90LF
90RF

Connector 2 Exit Angle

180
45LF
45RF
90LF
90RF

RS-449 Straight-thru Cable [DB37M/DB37F] Specifications

Name	RS-449 Straight-thru Cable [DB37M/DB37F]
Short Description	RS-449 DB37M / DB37F Straight-thru Cable; Choose Any Length, Jacket (PVC or Plenum), and Degree of Cable Exit
Protocol	RS-449
Connector 1 [?]	DB37M
Connector 2 [?]	DB37F
Lead Time [?]	Usually ships within 2 days
Manufacturer	Stonewall Cable, Inc.
Country of Origin	United States
RoHS Compliant [?]	No
REACH Compliant [?]	Under review. Call for information.
BAA Compliant [?]	Under review. Call for information.
TAA Compliant [?]	Yes
Parent SKU	*SC-3393-2bcd
