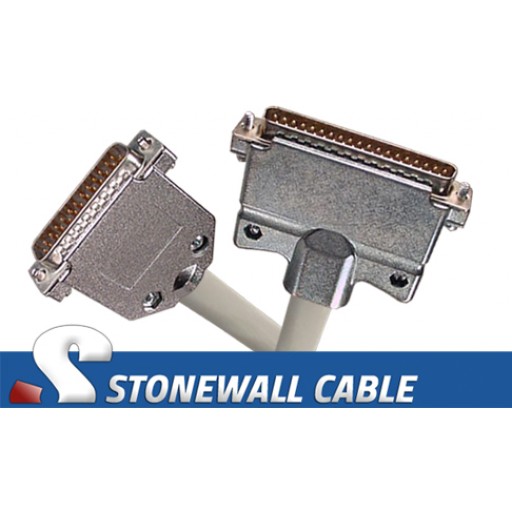

RS-530 to RS-449 Crossover Cable [DB25M/DB37M]

RS-530 to RS-449 Crossover Cable [DB25M/DB37M] Description

This RS-530 to RS-449 adapter cable connects an RS-530 DTE device with a DB25 female interface to an RS-449 DTE device with a DB37 female interface. It may also be used to convert RS-449 to RS-530 or for DCE to DCE applications. This cable is DB25 male to DB37 male. Most applications require a PVC jacket. Stonewall also offers a plenum rated jacket and a Low Smoke Zero Halogen (LSZH) jacket. See Additional Information.

Stonewall's RS-530 to RS-449 Crossover Cable [DB25M/DB37M] is available with the following options:

Jacket Type

Standard PVC
Plenum
LSZH (Low Smoke Zero Halogen)

RS-530 to RS-449 Crossover Cable [DB25M/DB37M] Specifications

Name	RS-530 to RS-449 Crossover Cable [DB25M/DB37M]
Short Description	RS-530 (DB25M) to RS-449 (DB37M) Crossover Cable; Choose Any Length, and Jacket (Standard PVC, Fire Rated Plenum, or Low Smoke Zero Halogen)
Protocol	RS-530
Connector 1 [?]	DB25M
Connector 2 [?]	DB37M
Lead Time [?]	Usually ships within 2 days
Manufacturer	Stonewall Cable, Inc.
Country of Origin	United States
RoHS Compliant [?]	No
REACH Compliant [?]	Under review. Call for information.
BAA Compliant [?]	Under review. Call for information.
TAA Compliant [?]	Yes
Parent SKU	*SC-3074-MM-a
