MII Fast Ethernet M / M X

MII Fast Ethernet M / M X Description

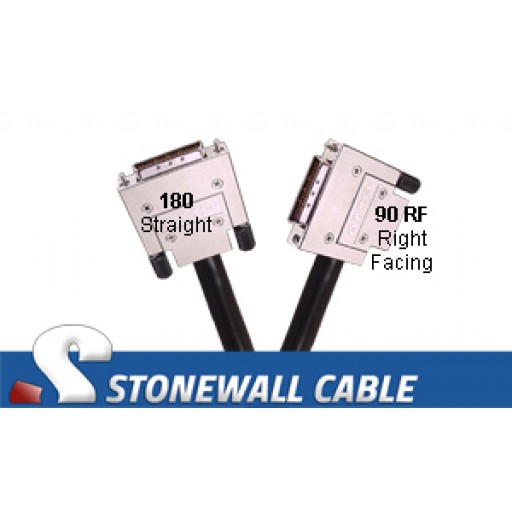

Null Modem, Crossover style. Most standard applications use straight (180) exit backshells. For angled (90) backshells determine cable exit as follows. RF, right facing, cable exits toward Pin 1. LF, left facing, cable exits toward Pin 20.

Stonewall's MII Fast Ethernet M / M X is available with the following options:

Connector 1 Exit Angle

180
90 LF
90 RF

Connector 2 Exit Angle

180
90 LF
90 RF

MII Fast Ethernet M / M X Specifications

Name	MII Fast Ethernet M / M X
Short Description	MII Fast Ethernet MD40M / MD40M Crossover Cable; Choose Any Length, and Degree of Cable Exit
Protocol	MII
Connector 1 [?]	Micro-D40M
Connector 2 [?]	Micro-D40M
Lead Time [?]	Usually ships within 5 - 7 days
Manufacturer	Stonewall Cable, Inc.
Country of Origin	United States
RoHS Compliant [?]	N/A
REACH Compliant [?]	Under review. Call for information.
BAA Compliant [?]	Under review. Call for information.
TAA Compliant [?]	Yes
Parent SKU	*SC-9599-N-11cd
