MII Fast Ethernet M / F Description

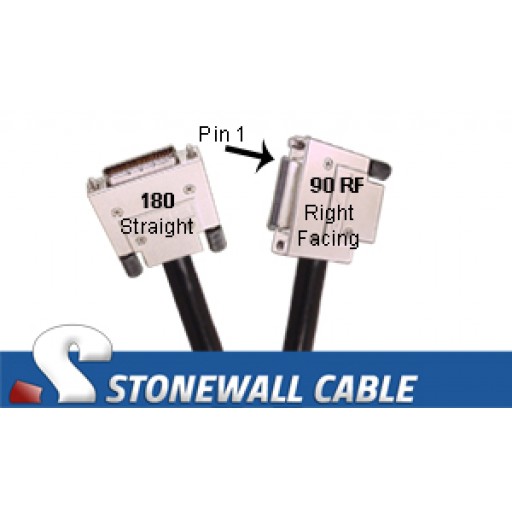

Female Connector has Female Jackscrews. Most standard applications use straight (180) exit backshells. For angled (90) backshells determine cable exit as follows. Male: RF, right facing, cable exits toward Pin 1. LF, left facing, cable exits toward Pin 20. Female: RF, right facing, cable exits toward Pin 20. LF, left facing, cable exits toward Pin 1.
Stonewall's MII Fast Ethernet M / F is available with the following options:
Connector 1 Exit Angle
- 180
- 90 LF
- 90 RF
Connector 2 Exit Angle
- 180
- 90 LF
- 90 RF
