KG-194 Red to RS-530 DTE [DB25M/DB60M]

KG-194 Red to RS-530 DTE [DB25M/DB60M] Description

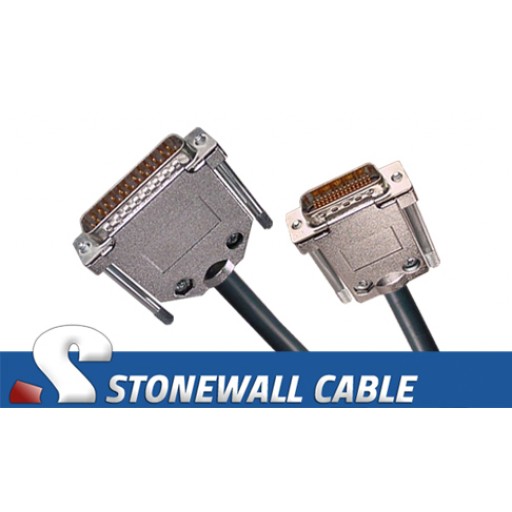

This encryption cable connects a KG-194 Red or KG-94 Red to an RS-530 DTE device with a DB60 female interface. Most applications require a PVC jacket. Stonewall also offers a plenum rated jacket and a Low Smoke Zero Halogen (LSZH) jacket. See Additional Information.

KG-194 applications require two cables: a "Red" (unencrypted) interface cable and a "Black" (encrypted) interface cable. See KG-94 / KG-194 Black Encryption Cables.

Stonewall's KG-194 Red to RS-530 DTE [DB25M/DB60M] is available with the following options:

Jacket Type

Standard PVC
Plenum
LSZH (Low Smoke Zero Halogen)

KG-194 Red to RS-530 DTE [DB25M/DB60M] Specifications

Name	KG-194 Red to RS-530 DTE [DB25M/DB60M]
Short Description	KG-194 Red (DB25) to Cisco RS-530 (DB60); Choose Any Length, and Jacket (Standard PVC, Fire Rated Plenum, or Low Smoke Zero Halogen)
Protocol	RS-530
Connector 1 [?]	DB25M
Connector 2 [?]	DB60M
Lead Time [?]	Usually ships within 2 days
Manufacturer	Stonewall Cable, Inc.
Country of Origin	United States
RoHS Compliant [?]	No
REACH Compliant [?]	Under review. Call for information.
BAA Compliant [?]	Under review. Call for information.
TAA Compliant [?]	Yes
Parent SKU	*SC-7546-a
