KIV-19 Black GTM to RS-530 DCE

KIV-19 Black GTM to RS-530 DCE Description

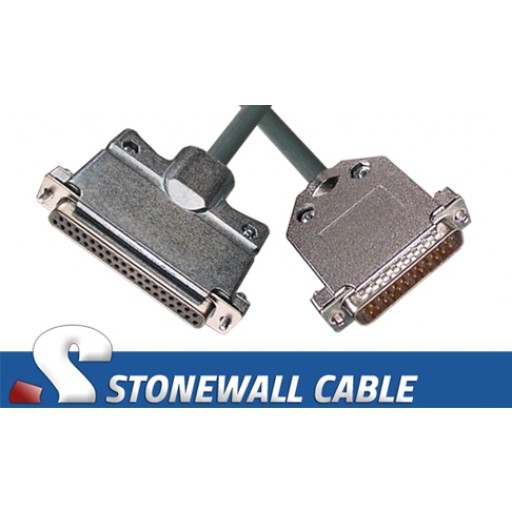

This encryption cable connects a Group Technologies mount KIV-19 Black with a DB37 male interface to an RS-530 DCE device with a DB25 female interface. Most applications require a PVC jacket. Stonewall also offers a plenum rated jacket and a Low Smoke Zero Halogen (LSZH) jacket. See Additional Information.

KIV-19 applications require two cables: a "Red" (unencrypted) interface cable and a "Black" (encrypted) interface cable. See KIV-19 Red Encryption Cables.

Stonewall's KIV-19 Black GTM to RS-530 DCE is available with the following options:

Jacket Type

Standard PVC
Plenum
LSZH (Low Smoke Zero Halogen)

KIV-19 Black GTM to RS-530 DCE Specifications

Name	KIV-19 Black GTM to RS-530 DCE
Short Description	KIV-19 Black Group Tech Mount (DB37) to RS-530 DCE (DB25); Choose Any Length, and Jacket (Standard PVC, Fire Rated Plenum, or Low Smoke Zero Halogen)
Protocol	RS-530
Connector 1 [?]	DB37F
Connector 2 [?]	DB25M
Lead Time [?]	Usually ships within 2 days
Manufacturer	Stonewall Cable, Inc.
Country of Origin	United States
RoHS Compliant [?]	No
REACH Compliant [?]	Under review. Call for information.
BAA Compliant [?]	Under review. Call for information.
TAA Compliant [?]	Yes
Parent SKU	*SC-7559-a
