KG-194A Red to Cisco 530MT Cable Description

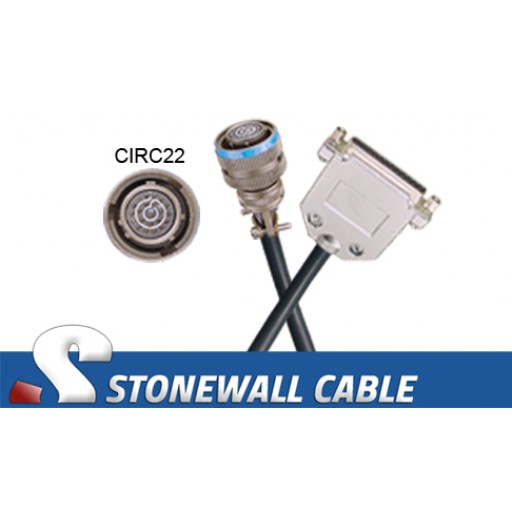

This encryption cable connects a KG-194A Red device with a Cannon Circular 22 style interface to Cisco 530MT cable with a DB25 male interface. The Circular 22 connector and strain relief are built to military specifications. Most applications require a PVC jacket. Stonewall also offers a plenum rated jacket and a Low Smoke Zero Halogen (LSZH) jacket. See Additional Information.
KG-194A applications require two cables: a "Red" (unencrypted) interface cable and a "Black" (encrypted) interface cable. See KG-94 / KG-194 Black Encryption Cables.
Stonewall's KG-194A Red to Cisco 530MT Cable is available with the following options:
Jacket Type
- Standard PVC
- Plenum
- LSZH (Low Smoke Zero Halogen)
KG-194A Red to Cisco 530MT Cable Specifications
| Name | KG-194A Red to Cisco 530MT Cable |
|---|---|
| Short Description | KG-194A Red (Circular 22) to Cisco 530MT Cable (DB25); Any Length, and Jacket (Standard PVC, Fire Rated Plenum, or Low Smoke Zero Halogen) |
| Protocol | RS-530 |
| Connector 1 | CIRC22 |
| Connector 2 | DB25F |
| Lead Time | Usually ships within 3 - 10 days |
| Manufacturer | Stonewall Cable, Inc. |
| Country of Origin | United States |
| RoHS Compliant | No |
| REACH Compliant | Under review. Call for information. |
| BAA Compliant | Under review. Call for information. |
| TAA Compliant |
Yes  |
| Parent SKU | *SC-3631-a |
