KG-194 HNF Black to RS-449 DCE

KG-194 HNF Black to RS-449 DCE Description

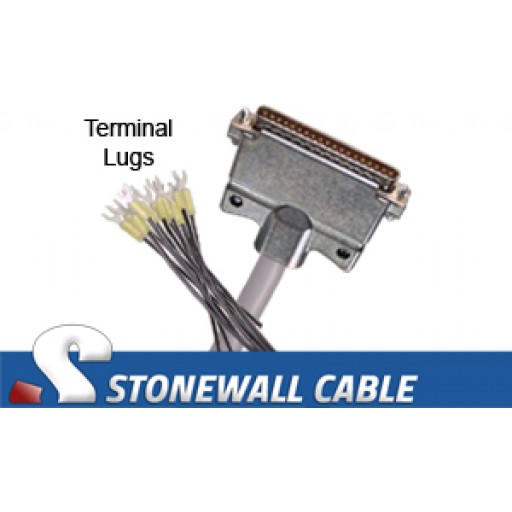

This encryption cable connects a KG-194 HNF Black or KG-94 HNF Black with Terminal Screws to an RS-449 DCE device with a DB37 female interface. Most applications require a PVC jacket. Stonewall also offers a plenum rated jacket and a Low Smoke Zero Halogen (LSZH) jacket. See Additional Information.

KG-194 applications require two cables: a "Red" (unencrypted) interface cable and a "Black" (encrypted) interface cable. See KG-94 / KG-194A Red Encryption Cables.

Stonewall's KG-194 HNF Black to RS-449 DCE is available with the following options:

Jacket Type

Standard PVC
Plenum
LSZH (Low Smoke Zero Halogen)

KG-194 HNF Black to RS-449 DCE Specifications

Name	KG-194 HNF Black to RS-449 DCE
Short Description	KG-194 HNF Black (Terminal Lug) to RS-449 DCE (DB37); Choose Any Length, and Jacket (Standard PVC, Fire Rated Plenum, or Low Smoke Zero Halogen)
Protocol	RS-449
Connector 1 [?]	Terminal Lugs
Connector 2 [?]	DB37M
Lead Time [?]	Usually ships within 2 days
Manufacturer	Stonewall Cable, Inc.
Country of Origin	United States
RoHS Compliant [?]	No
REACH Compliant [?]	Under review. Call for information.
BAA Compliant [?]	Under review. Call for information.
TAA Compliant [?]	Yes
Parent SKU	*SC-7487-HNFa
